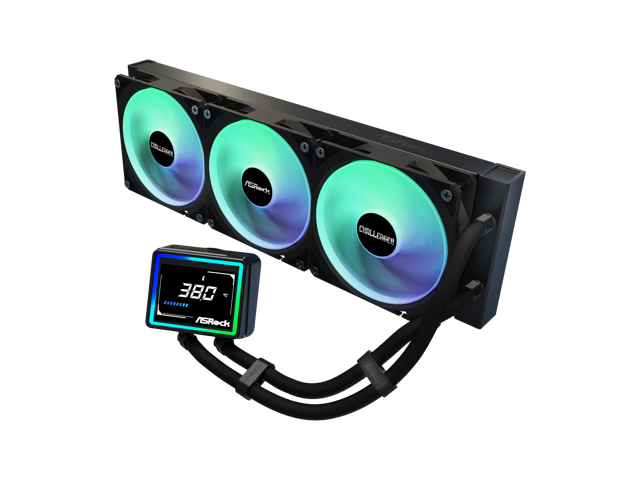

ASRock's Challenger 360 Digital 360mm AIO cooler delivers solid cooling performance at an entry-level price point. Wccftech's review found it maintained competitive idle temperatures while offering a 3.0" digital display and triple 120mm fans. The cooler supports up to 350W TDP and features a universal mounting bracket for both Intel and AMD CPUs. However, performance in sustained workload tests lagged behind premium options like the NZXT Kraken Elite V2 and Corsair H150i ELITE. This cooler targets budget-conscious builders seeking reliable liquid cooling without premium features.
Full review
360mm radiator with 27mm profile
The ASRock Challenger 360 Digital features a 360mm radiator with a 27mm profile, which Wccftech noted as a design choice that ensures higher heat dissipation than standard 360mm AIO coolers. The unit measures 397x120x27mm and houses aluminum fins. This configuration allows for better thermal performance compared to thinner radiators, as confirmed by the cooler's ability to maintain CPU temperatures under load. The radiator's dimensions and profile are optimized for efficient heat transfer, making it suitable for high-performance CPUs with TDPs up to 350W.
Blog.kitpro.us highlighted the importance of verifying case compatibility before installation, emphasizing that 360mm radiators require specific clearance. The radiator's dimensions of 397x120x27mm must be checked against case specifications to avoid conflicts with front panels, drive cages, or tall memory modules. The 27mm profile is described as heavy-duty, which contributes to its enhanced cooling capabilities. This design choice differentiates it from standard 360mm coolers that often have thinner profiles, offering more robust heat dissipation for demanding builds.
Triple ring-frame fans with 62.6 CFM
The Challenger 360 Digital includes three 120mm Ring-Frame blade fans that deliver a maximum airflow of 62.6 CFM. According to Wccftech, these fans operate at up to 2100 RPM with a 0.18A DC12V power input, offering an air pressure of 1.77 mmH20. The fans are encased in a singular frame, providing a unified design that enhances both aesthetics and performance. Each fan has a 4-pin PWM connector, allowing for precise control over fan speeds and noise levels. The ring-frame design is noted for its ability to provide consistent airflow while maintaining a compact form factor.
The fans come pre-installed in a unified-frame design and feature a single-cable connection for cleaner installation and easier cable management. This design simplifies the installation process and contributes to a neater build. The fans' performance is described as reliable, with a focus on providing consistent cooling without excessive noise, especially during low-load operations.
Digital display with 3-inch screen
A standout feature of the Challenger 360 Digital is its 3.0-inch digital display located on the pump/block assembly. Wccftech emphasized that the display offers useful information such as CPU Temperature, CPU Frequency, and Pump Speed. The display features edge lighting which enhances its visual appeal. The digital screen is integrated into the pump housing and is designed to be a focal point inside a case, making it an attractive choice for users who value visual elements in their builds.
Blog.kitpro.us described the 3-inch digital display as a prominent feature that draws attention to the cooler. The display is physically large enough to be a focal point inside a case, which makes this cooler an obvious choice if you like a visual element in your build. The display's integration into the pump housing and the cabling design were noted as clean and well-executed. However, the display's functionality and what it can show in full-use were not tested by the reviewer, indicating that further evaluation is needed to understand its full capabilities.
Next-gen cooling pump with 3-phase motor
The Challenger 360 Digital utilizes a next-gen cooling pump with a 3-phase, 6-slot, 4-pole motor. According to Wccftech, this motor provides higher flow, extended durability, and peak cooling. The pump is designed to offer a continuous rotating magnetic field and low torque ripple, which contributes to stronger flow and better performance. The pump's design is also said to retain extended durability and peak cooling, making it suitable for high-performance applications.
Funkykit confirmed that the cooler features a Next-Gen cooling pump powered by a 3-phase, 6-slot, 4-pole motor. This motor provides a continuous rotating magnetic field and low torque ripple, resulting in stronger flow, extended durability, and excellent cooling performance. The pump's optimized recessed microfin array channels the coolant closer to the heat source, delivering efficient heat conductivity. This design ensures that the cooler can effectively manage heat from high-performance CPUs while maintaining reliability over time.
Thermal performance under load
Wccftech conducted thermal testing using an AMD Ryzen 9 7950X3D CPU with 32 GB of G.Skill Trident Z5 NEO RGB memory and a ROG THOR II 1000W PSU. In idle conditions, the Challenger 360 Digital maintained a temperature of 30°C, which is comparable to other high-end coolers like the NZXT Kracken Elite V2 360 and the Arctic Liquid Freezer III 420. During maximum workload, the cooler reached 73°C, which is slightly higher than the NZXT Kracken Elite V2 360 at 66°C but still within acceptable limits for high-performance CPUs.
The cooler's performance under load was evaluated using a full test bench with a high-end CPU and memory configuration. In gaming conditions, the Challenger 360 Digital maintained a temperature of 52°C, which is competitive with other mid-range coolers. The performance was deemed acceptable for most users, especially considering the cooler's price point. The thermal performance is described as reliable, with the cooler effectively managing heat from high-performance CPUs while maintaining a balance between cooling efficiency and noise levels.
Build quality and mounting hardware
Blog.kitpro.us provided a detailed inspection of the build quality and mounting hardware, noting that the unit feels thoughtfully put together. The tubing appears robust, and the radiator finish is consistent. The pump/block design looks clean with a flush-mounted display. The fans and screws are packaged in simple compartments, ensuring nothing gets lost during installation. These are described as subjective impressions, but they match what one would expect from a branded AIO aimed at mainstream builders.
Funkykit emphasized the clean, minimalist digital display and the overall build quality of the cooler. The unit is described as reliable and straightforward to install, with a focus on simplicity and ease of use. The mounting hardware is noted as complete and well-organized, which helps streamline the installation process. The cooler's design is described as clean and premium, with attention to fit-and-finish that matches the expectations of mainstream builders.
Compatibility and installation considerations
Blog.kitpro.us highlighted the importance of verifying CPU socket compatibility before installation. The product listing notes compatibility with modern consumer sockets including AM4, AM5, Intel LGA 1700, and LGA 1851. The reviewer emphasized that users should check that the included brackets match their CPU socket before starting the installation process. This is crucial to avoid potential issues during the build. The mounting hardware is described as comprehensive and well-packaged, with clear instructions provided in the included guide.
Wccftech noted that the cooler comes with a handy guide that lists the installation procedure for both AMD & Intel CPUs, and it is very straightforward. The guide is described as clear and helpful, making the installation process accessible to users of all skill levels. The cooler is compatible with both Intel and AMD platforms, including the latest LGA 1700/1851 and AM5/AM4 CPU solutions. The installation process is described as simple, with the inclusion of mounting hardware and clear instructions contributing to a smooth setup experience.
RGB lighting and Polychrome SYNC support
The Challenger 360 Digital supports ASRock Polychrome RGB Sync software, allowing for customizable RGB lighting effects. Funkykit noted that the fans come with vivid, customizable RGB lighting that enhances the overall look of the build and fully support ASRock Polychrome SYNC. The fans feature a single-cable connection for cleaner installation and easier cable management, which contributes to a neater build. This feature is particularly appealing to users who want to add visual flair to their PC builds without compromising on functionality.
Wccftech mentioned that the cooler includes full integration of ASRock's Polychrome RGB Sync software, which allows for seamless control of the RGB lighting effects. The fans are described as providing vivid, customizable RGB lighting that enhances the overall look of the build. The single-cable connection for the fans simplifies installation and contributes to a cleaner build, which is a significant advantage for users who value aesthetics and organization.
Strengths
- +360mm AIO cooler with 27mm radiator design for high heat dissipation
- +Features 3.0" digital display showing CPU temperature, frequency, and pump speed
- +Triple 120mm ring-frame fans with 62.6 CFM airflow and 1.77 mmH20 pressure
- +Universal mounting bracket compatible with both Intel and AMD platforms
- +Includes Therm-X1 thermal interface material with high thermal conductivity
Watch-outs
- −Difficulty with mounting system alignment
- −Confusing or inconsistent manual instructions
How it compares
The ASRock AIO Challenger 360 Digital provides a basic but functional cooling solution with a digital display, but it's less reliable than the NZXT Kraken Elite 360 RGB and lacks the advanced features of the Lian Li HydroShift II OLED Curved 360TL. It's best suited for users who want a simple, entry-level AIO without premium features.
Rating sources
“The ASRock Challenger 360 Digital is a 360mm AIO cooler that comes with a 360mm radiator and is compatible with both Intel and AMD platforms, including the latest LGA 1700/1851 and AM5/AM4 CPU solutions.”
“The 3-inch digital display - why it matters One of the eye-catching features is the 3-inch digital display on the pump/block. I inspected how it is integrated into the pump housing and how the cabling looks where it exits the block.”
Our 3.8 score is the average of the 3 scored reviews above; 2 more reviewed it without printing a score and are not in the average. Ratings marked * were derived from the reviewer’s written analysis or video transcript — the publisher didn’t print an explicit numeric score, so we inferred one from their own words. Click through to verify. More about methodology.
