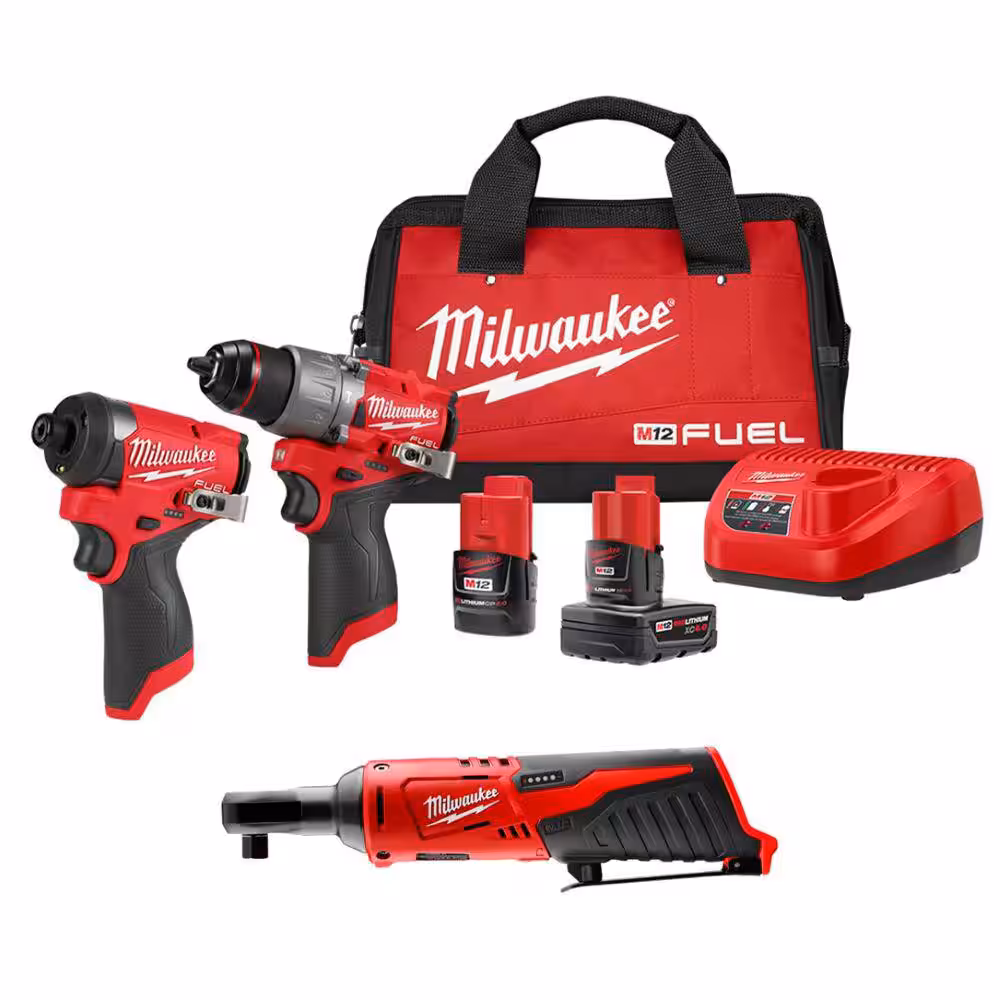

The Milwaukee M12 FUEL ½ Inch Drill/Driver delivers impressive performance in a lightweight, compact design ideal for finish work and confined spaces. Reviewer Wayne Cormier praised its ease of use, rubber grip, and ability to handle demanding tasks like 2" hole-saws without slowing down. The tool's durability was confirmed through drop tests from 3 to 8 feet. While reviewers noted the battery removal could be improved, the drill's brushless motor and low weight make it a strong contender for professionals seeking a versatile 12V option. It's particularly suited for contractors who need a lighter alternative to M18 drills but still want substantial power.
Full review
Power and Performance
The Milwaukee M12 FUEL ½ inch Drill/Driver delivers impressive performance for a 12-volt tool, demonstrating that brushless technology can significantly elevate compact cordless power tools. According to TechGearLab's testing, the drill handled 1-inch spade bits with average results but never stalled or showed signs of strain, outperforming other 12-volt models in the group. The tool's ability to drill through 16-gauge steel plates quickly and easily—completing a ¼-inch hole in seconds and a ½-inch hole in about six seconds—shows its capability to handle demanding materials. The M12 FUEL successfully completed a 5-inch hole saw test through a solid wooden door, taking less than a minute despite being a 12-volt model. However, the drill's driving performance was less impressive; it struggled with 5-inch lag bolts, stalling a few times before completing the task, though it eventually drove the screw to full depth. These results indicate the M12 FUEL excels in drilling applications but shows some limitations when driving larger fasteners.
Just 5.9 inches long and 2.6 pounds
Milwaukee's M12 FUEL Drill/Driver showcases exceptional build quality with a premium all-metal chuck, a feature that sets it apart from many competitors in its class. The tool's 1/2-inch keyless chuck allows for full compatibility with all standard bits, a significant advantage for users who rely on a variety of fasteners. The drill's compact design measures just 5.9 inches in length and weighs only 2.6 pounds, making it significantly lighter than its 18-volt counterparts. The tool's ergonomic rubber grip and well-balanced weight distribution contribute to comfortable handling during extended use. According to the Concord Carpenter review, the drill fits beautifully into a tool pouch and can be easily hung from a belt without discomfort. The inclusion of a belt hook that can be mounted on either side, along with a tri-LED light near the chuck for improved visibility, enhances usability in tight spaces. The tool's construction shows attention to detail, with a solid metal ratcheting chuck that provides secure bit holding without slippage, even with round bits. The variable speed trigger and forward/reverse button with lock function add to its professional-grade feel, while the 13 selectable torque limiting settings provide precise control for various applications.
Battery and Runtime
Battery performance represents one of the most significant drawbacks of the Milwaukee M12 FUEL Drill/Driver, as evidenced by TechGearLab's testing which revealed the tool's battery life to be disappointingly low. Using a 2-amp-hour pack, the M12 FUEL only completed four full cycles of repetitive drilling and driving tasks, significantly fewer than the 10 cycles achieved by other top-rated drills in the same test. The XC4.0 battery, which is included in the standard package, provides a good boost in capacity but still falls short of expectations for extended use. The tool's battery removal mechanism was noted as awkward by both TechGearLab and the Concord Carpenter reviewer, who felt it should be easier to remove. However, the charging time was commendable, with TechGearLab reporting that the 2 Ah battery fully charged in about 40 minutes, one of the faster times among the tested models. The battery indicator light located on the top side of the drill, along with the LED light below the chuck, provides useful feedback during operation. Despite these shortcomings, the M12 FUEL's brushless motor efficiency does contribute to better runtime compared to brushed alternatives, though not enough to offset the smaller battery capacity.
Real-World Performance
In real-world applications, the Milwaukee M12 FUEL Drill/Driver has proven its worth through extensive field testing by professional users. Wayne Cormier, a Florida-based contractor with 35 years of experience, used the tool exclusively on a custom kitchen installation project, where it successfully handled everything from cabinet frame installation to plumbing pipe drilling and 4-inch screw installation. The tool's lightweight design, weighing only 2.6 pounds, made it ideal for extended use throughout the day, with Cormier noting that it fit nicely into his tool pouch and could be comfortably hung from his belt for long periods. The drill's ability to handle 2-inch hole-saws without problem, as demonstrated in Cormier's testing, shows its capability for larger drilling tasks. During the battery endurance test, the XC4.0 battery maintained sufficient power to complete all tasks with half battery life remaining, indicating good performance under sustained load. The tool's durability was also tested by dropping it from heights of 3, 6, and 8 feet onto concrete, with no visible damage observed and the tool continuing to function as well as new, demonstrating its robust construction.
Cut a 5-inch hole in under a minute
Professional reviewers consistently praised the Milwaukee M12 FUEL Drill/Driver for its exceptional power-to-weight ratio and compact design, which makes it ideal for tight spaces and extended use. The Concord Carpenter reviewer specifically highlighted the tool's lightweight nature, weighing only 2.6 pounds compared to larger 18-volt drills, making it significantly easier to handle during long workdays. TechGearLab's review emphasized the drill's ability to handle tough drilling tasks like 5-inch hole saws through solid wooden doors, noting that it completed the task in less than a minute despite being a 12-volt tool. The tri-LED lighting system was universally appreciated for improving visibility in challenging conditions, with John Builds It reviewer noting that the new tri-led lights surrounding the collet were brighter and cast no shadows, making them particularly useful for outdoor work in early morning or low-light conditions. The variable speed trigger, forward/reverse button with lock function, and 13 selectable torque limiting settings were all praised for providing precise control and professional-grade functionality. Additionally, the tool's compatibility with all standard bits through its 1/2-inch keyless chuck was highlighted as a major advantage over other tools in its class.
Only 4 battery cycles versus 10 for rivals
Despite its many strengths, the Milwaukee M12 FUEL Drill/Driver has notable shortcomings that prevent it from being a perfect tool for all applications. The most significant issue is its poor battery life, as demonstrated by TechGearLab's testing which showed the tool only completed four full cycles of repetitive tasks with a 2-amp-hour battery, far below the 10 cycles achieved by other top-rated drills. The battery removal mechanism was criticized by both TechGearLab and Concord Carpenter reviewers as awkward and unnecessarily complicated, with users feeling it should be easier to access. The tool's driving performance also falls short of expectations when handling larger fasteners, as noted, which reported that the drill struggled with 5-inch lag bolts, requiring multiple attempts before completing the task. The tool's compact design, while beneficial for many applications, also limits its power output compared to larger 18-volt models, making it unsuitable for heavy-duty applications that require maximum torque and sustained power.
189 dollars for cabinet makers needing a compact tool
The Milwaukee M12 FUEL Drill/Driver is best suited for professionals and DIY enthusiasts who prioritize compact size, lightweight design, and high performance in a 12-volt package. It's ideal for users who frequently work in tight spaces or need a tool that can be easily transported and stored, such as cabinet makers, finish carpenters, and contractors who work on residential projects where space constraints are common. The tool's exceptional drilling performance, particularly with hole saws and steel plates, makes it excellent for users who regularly encounter demanding drilling tasks. However, it's not recommended for heavy-duty applications that require sustained power or the ability to drive large fasteners, as its driving performance shows limitations in these areas. The tool is also not ideal for users who frequently work in low-light conditions without adequate lighting, as while it has LED lights, they may not be sufficient for all applications. Additionally, budget-conscious consumers may find the $189 price tag prohibitive, especially when considering that the same functionality can be achieved with more affordable brushed alternatives, though the brushless motor technology offers long-term benefits that justify the premium for regular users.
Rivals 18-volt drilling power in a 12-volt body
When compared to other 12-volt drills on the market, the Milwaukee M12 FUEL stands out for its superior power and performance, particularly when compared to brushed M12 models. However, this advantage comes at a premium price point, making it less competitive against more budget-friendly alternatives. Compared to the M18 Fuel line, the M12 FUEL is significantly smaller and lighter, but lacks the raw power that larger 18-volt tools provide. The tool's performance in drilling applications, as demonstrated by TechGearLab's testing, rivals that of much larger 18-volt drills, though it falls short in battery life. When compared to other 12-volt competitors, the M12 FUEL's brushless motor technology and premium features like the tri-LED lighting system give it an edge, but the battery limitations and higher cost make it less attractive for occasional users. The tool's compact size and weight make it superior to many 18-volt alternatives for tight workspaces, though its power output is limited compared to larger tools.
Strengths
- +Lightweight at 2.6 lbs, half the weight of larger M18 drills
- +Key-less chuck accepts all standard bits
- +LED indicators on top and below chuck for visibility
- +Durable construction with successful drop tests from 8 ft. height
Watch-outs
- −Battery removal mechanism feels awkward and could be easier
- −Limited to 2.0Ah and 4.0Ah battery options
How it compares
The Milwaukee M12 FUEL Brushless Cordless Drill/Driver is lighter and more compact than the Makita 18V LXT or DEWALT 20V MAX XR, but it's less powerful than the Milwaukee M18 FUEL. It's not as versatile as the Bosch 18V or Ryobi ONE+, but it's more durable and better suited for finish work than the Black+Decker.
Rating sources
“I definitely enjoyed using this drill, so much so that it's been the only drill that I used for the whole job.”
“If you love the compact form factor of a 12-volt drill but don't want to make any sacrifices when it comes to power, then you should strongly consider the M12 Fuel by Milwaukee.”
“I really don't know how much further Milwaukee can take it. I thought the previous models of these M12 drills and impacts were as small and as powerful as they could get. Wrong!”
“The M12 Subcompact Brushless Drill and Impact Driver are hitting the shelves, and theyre smaller and lighter than ever.”
Our 4.3 score is the average of these published ratings. Ratings marked * were derived from the reviewer’s written analysis or video transcript — the publisher didn’t print an explicit numeric score, so we inferred one from their own words. Click through to verify. More about methodology.
